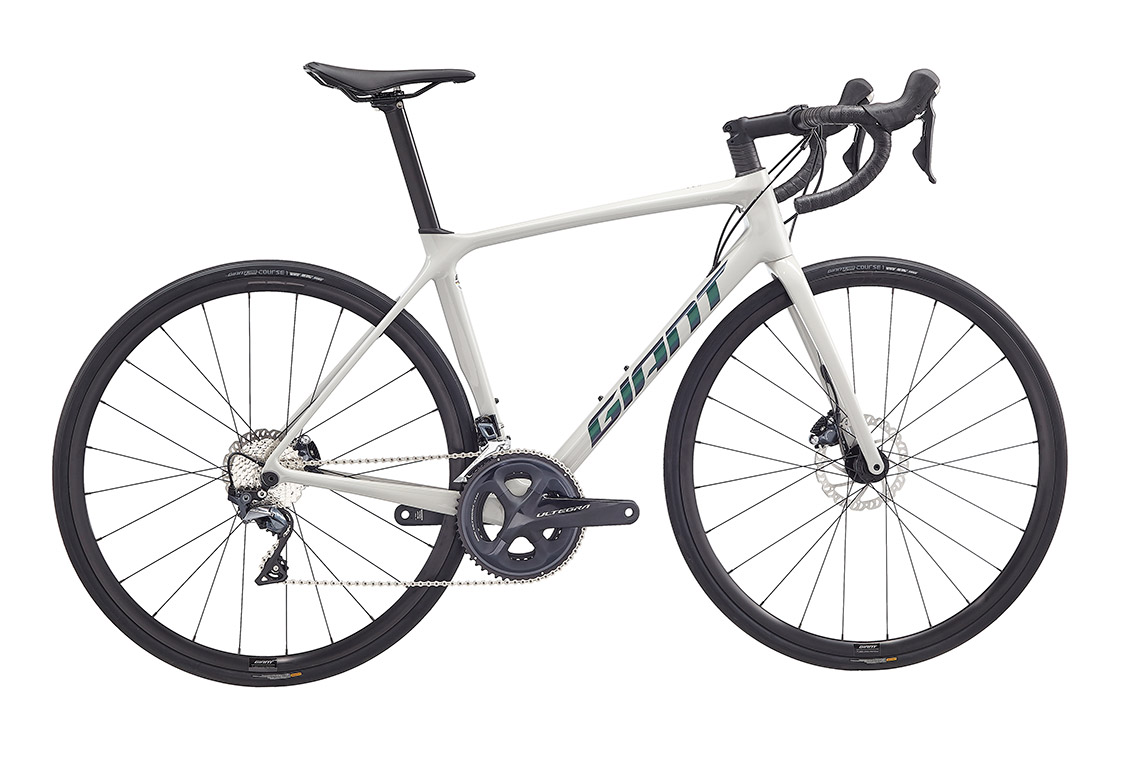

Giant TCR Advanced 1 Disc 2021. All Sizes NOW back in Store.

€2,999.00

Training, racing, pushing it to the limit. Whether you’re attacking the field or digging deep for a new PR, the new TCR Advanced Disc is lighter, stiffer and faster with strategic aero tube shaping, added tyre clearance and integrated disc brake technology.

Reengineered with updated aerodynamic tube shaping in the headtube, downtube and fork, plus added clearance for larger diameter tyres (up to 32mm), the new TCR Advanced Disc delivers outstanding on-the-road efficiency. The Variant seatpost adds just enough compliance to give it a balanced, race-tuned feel on the road. And with its integrated disc-brake technology, including flat mounts and 12mm front and rear thru-axles, it’s an all-weather, all-conditions race machine to keep you at the front of the pack.

KEY PERFORMANCE FACTORS

Class-leading efficiency

With an impressive stiffness-to-weight ratio and updated aero tube shaping, this frameset is engineered to give road racers and riders superior climbing capabilities, aerodynamic efficiency and sprint stiffness for race-winning performance.

Advanced aerodynamics

This is where the TCR’s most quantifiable gains can be found compared to previous generation models. Every tube shape was analysed, engineered and tested to create an overall structure with significantly lower drag at a wider range of yaw angles. The result is a TCR that’s faster than ever in sprints and solo situations.

Total control

Integrated disc brakes deliver smooth, powerful stopping power and modulation for added control in variable weather and road conditions. Flat mounts and new thru-axles boost stiffness and improve overall handling, while added frame and fork clearance allows for larger diameter tyres up 32mm.

Category:

Description

Sizes S, M, ML, L, XL
Colours Concrete/Chameleon Galaxy
Frame Advanced-Grade Composite, disc
Fork Advanced-Grade Composite, OverDrive steerer, disc
Shock N/A
Handlebar Giant Contact
Stem Giant Contact
Seatpost Giant Variant, composite
Saddle Giant Approach
Pedals N/A
Shifters Shimano Ultegra
Front Derailleur Shimano Ultegra
Rear Derailleur Shimano Ultegra
Brakes Shimano Ultegra hydraulic
Brake Levers Shimano Ultegra hydraulic
Cassette Shimano 105, 11×30
Chain KMC X11EL-1
Crankset Shimano Ultegra, 36/52
Bottom Bracket Shimano, press fit
Rims Giant PR-2 Disc wheelset
Hubs Giant PR-2 Disc wheelset, 12mm thru-axle
Spokes Giant PR-2 Disc wheelset
Tyres Giant Gavia Course 1, tubeless, 700x25mm (max tyre width possible: 32mm)
Weight 8.2kg (medium)

 Download PDF

All specifications listed are subject to change without notice.

HIGHLIGHTS

Combining lightweight composite frame engineering with strategic aero tube shaping and integrated disc brakes, the new TCR Advanced Disc series delivers versatile road racing performance. Here’s a look at its key technologies.

12345678910Highlights

GEOMETRY

bike diagram
S M ML L XL
SEAT TUBE LENGTH (mm) 445 470 500 530 560
SEAT TUBE ANGLE 74.0° 73.5° 73.0° 73.0° 72.5°
TOP TUBE LENGTH (mm) 535 550 565 580 600
HEAD TUBE LENGTH (mm) 130 145 165 185 200
HEAD TUBE ANGLE 72.3° 73.0° 73.0° 73.0° 73.0°
FORK RAKE (mm) 45 45 45 45 45
TRAIL (mm) 64 59.2 59.2 59.2 59.2
WHEELBASE (mm) 977 980 991 1006 1020
CHAIN STAY LENGTH (mm) 405 405 405 405 405
BOTTOM BRACKET DROP (mm) 69.5 69.5 67 67 67
STACK (mm) 528 545 562 581 596
REACH (mm) 383 388 393 402 412
STAND OVER HEIGHT (mm) 725 747 773 800 816
HANDLEBAR WIDTH (mm) 400 420 420 440 440
STEM LENGTH (mm) 90 100 110 110 120
CRANK LENGTH (mm) 170 172.5 172.5 175 175
WHEEL SIZE 700C 700C 700C 700C 700C

360-View

TCR Advanced 1 Disc


TECHNOLOGIES & FEATURES

Advanced Composite Technology
Compact Road Design
MegaDrive
OverDrive
PowerCore
RideSense Ready
Tubeless System
Variant Seatpost
